A failed Whirlpool oven bake sensor, also called the RTD probe, makes the control read an open circuit, and the oven shows the F3E0 code and refuses to heat. Either the sensor has failed or its wiring is broken, and since the oven cannot measure its own temperature it refuses to heat. The quick answer: turn the oven off at the breaker, let it cool, check that the sensor connector is seated, and if the code returns, have a technician replace the sensor. Our Whirlpool oven F3E0 error page has the reference listing; this guide goes deeper on the sensor.
What does F3E0 mean on a Whirlpool oven?

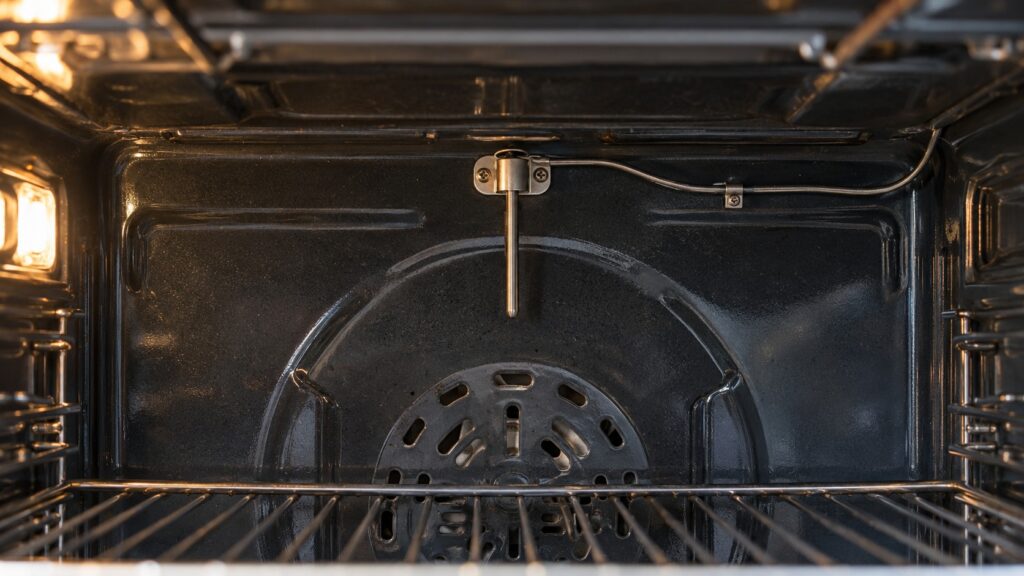

The oven measures its own temperature with a slim probe, usually mounted high on the rear wall of the cavity, with a wire running out to the control. The probe is a resistance temperature detector: its electrical resistance changes in a known way as it warms. At room temperature a healthy probe reads about 1080 to 1090 ohms. When the control sees a reading far above that, roughly 3000 ohms or higher, it concludes that the circuit is open. That means a broken probe, a broken wire or a connection that has come apart.
Because the control cannot tell how hot the oven is, it will not turn the heating elements on. That is a deliberate safety response; running an oven with no temperature feedback could overheat it. So F3E0 is a “will not heat” problem, not a “heats badly” one.
What symptoms come with F3E0?
The signs are consistent. The oven will not heat at all. The code may appear as soon as you power it on, or only a few seconds after you start a bake. The cycle cancels itself within seconds. The temperature display may read blank or show dashes instead of a number. If your oven heats but runs too hot or too cold, that is a different problem; read our Whirlpool oven temperature off guide instead.
Ovens that stop heating without any code at all belong in another category. Our oven not heating guide separates element, igniter and control failures.
What causes a bake sensor open-circuit?
Four things, in rough order of likelihood. The sensor itself can fail after years of heat cycling, so the element inside the probe has gone open. The wiring harness can be damaged, with wires broken, burned or pinched where they leave the cavity. The connector at the back of the oven, where the sensor wire plugs into the harness, can work loose. Least commonly, the control board’s sensor input has failed, which gives the same reading even though the sensor is fine. The reason for ranking is practical: you check the cheap, visible things first, and only blame the board after the sensor and wiring pass.
This pattern also explains why the code sometimes appears after a power event, a recent installation or service work: a connector that was disturbed during the work is a classic cause.
What can you check safely at home?
Shut off power to the oven at the circuit breaker, not just the control. Wait until the cavity is completely cool. If you are comfortable doing so, look for the sensor wire at the upper rear and the connector where it plugs in, and make sure the plug is fully seated. Look at the visible wire for burned insulation or pinched sections. If you own a multimeter, you can measure across the sensor with the oven cold; a reading near 1080 to 1090 ohms is good and an open reading is not. Do not probe a hot oven. Do not remove panels or touch wiring that is connected to the home supply. When you are not sure, stop; this is the point where a technician should take over.
If the connector was loose and reseating cures the code, keep a note of the date. A connector that works loose once may do so again, and a technician can secure it. Our guides on the F2E0 stuck key and F1E0 and F1E1 control board codes cover the other codes that can look similar at first glance.
How is F3E0 different from other F3 codes?
Codes that begin with F3 relate to temperature sensing, but the second half names the sensor. F3E0 is the bake sensor reading open. On this site the related F3E2 is a short circuit on the meat probe, which is a separate removable probe and not the permanent bake sensor, so a meat probe problem does not mean the oven cannot measure its own temperature. If F3E0 appears while a meat probe is plugged in, unplug the probe, power the oven down and back up and see whether the code changes. That simple step helps a technician decide where to start.
When should a technician replace the sensor?
When the code returns after the connector check, or when a reading shows an open circuit. A technician confirms the open circuit with a meter, replaces the sensor or repairs the harness, and then checks the control board’s input before returning the oven to service. The part is matched to your model; this code appears on combination and double wall ovens in the family, such as the WOC54EC0HS, WOC75EC0HS and WOEC3030LS, so give the full model and serial number when you book. Because F3E0 is rated high severity, we advise against repeatedly retrying the cycle.
